Managed VDSL2 Ethernet Extender Kit (200Mbps) - NV-700EKIT

Description

The NV-700EKIT Managed VDSL2 Ethernet Extender Kit is our latest point-to-point Ethernet extender kit for applications which require a managed solution. Simple to install and easy to use, the NV-700EKIT includes everything you need to quickly deploy one high-speed point-to-point Ethernet link at distances up to 10,826 feet (3.3km) with line speeds topping 100Mbps (200Mbps aggregate) up to 1,000 feet over a single twisted-pair of network or phone grade cable.

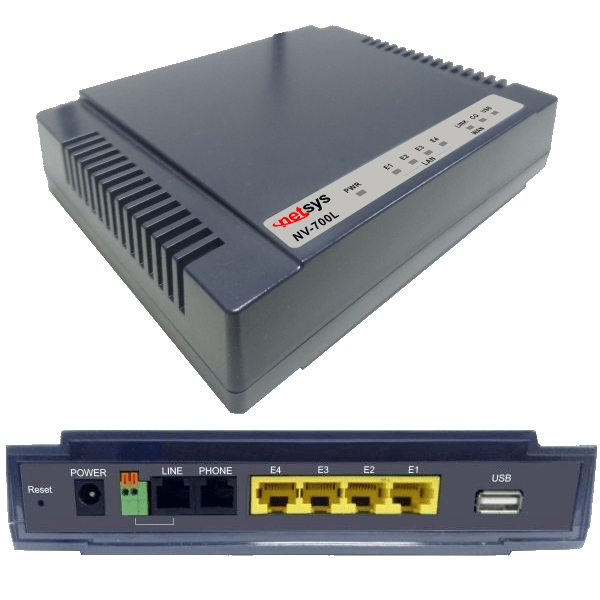

The NV-700EKIT includes 2 X NV-700L VDSL2 Modems, with one pre-configured in CO mode and the other pre-configured in CPE mode for plug-and-play operation out of the box. The NV-700L's web based management tool allows users to assign an IP address to the devices, manage and monitor the devices remotely on the network, and supports features such as static routing for IPv4 and IPv6 forwarding, and 8 selectable VDSL modes, among other features so users can tailor the configuration settings to suit the specific needs of their application.

Simple to install and use, the Netsys NV-700L which is pre-configured in CO mode is typically located in the Central Office, Computer Room, Wiring Closet, with one of its RJ-45 Ethernet Port connected to a router or switch. The Line Port of the NV-700L (RJ-11 port or 2-pin terminal block) is connected to a single twisted pair of network or phone grade cable extending to the remote device location. The NV-700L pre-configured in CPE mode is placed at the remote location, with its Line Port connected to the same single twisted pair of network or phone grade cable, and the Ethernet Port/s connected to the remote network device/s (PC, access point, smart TV, etc.) Once the NV-700L CO and CPE devices are connected to the AC power source, the link is established and automatically configured for the maximum speed based on the surrounding environment.

Features

Technical Specifications

Product Kit Contents

• 2 X NV-700L
• 2 X AC to DC Power Supply
• 2 X RJ-11 Patch Cable
• 2 X RJ-45 Patch Cable
• 1 X User Guide Download Link

Cable Connections

• 4 x RJ-45 10/100Mbps auto-negotiation Ethernet port
• 1 x RJ-11 / Terminal block combo for VDSL2 line port
• 1 x RJ-11 connector for POTS/ISDN device
• 1 x Reset Button for resetting to factory default

LED Indicators

• 1 x Power LED
• 4 x Link/Active Status for Ethernet port
• 1 x Link LED for VDSL2 line port
• 1 x USB LED

Switch method:

• Store and forward

Flow control:

• Full duplex: IEEE 802.3x
• Half duplex: Back pressure

Typical Power Consumption:

• 4.4 W(Full load)

Power Supply:

• External switching power adapter (Input: AC 85~240 Volts/50~60Hz, Output: DC 12V/1A)

Operating Temperature:

• 0°C ~ 50°C (32°F ~ 122°F) Fanless, free air cooling)

Storage Temperature:

• -20°C ~70°C (-4°F ~ 158°F)

Humidity:

• 10 to 90% (non-condensing)

Dimensions:

• 184 x 146 x 40 mm (7.2" x 5.74 " x 1.57")

Shipping Weight:

• 4 lbs (1.8 kg)
