Description
The NV-450EKIT G.fast Gigabit 1000Base-T Ethernet Extender Kit is the first point-to-point G.fast Gigabit Ethernet Extender on the market, and is the premier solution for today’s high bandwidth applications. Simple to install and easy to use, the NV-450EKIT includes everything you need to quickly deploy one high-speed point-to-point 1000Base-T Ethernet link with line speeds up to 1.1Gbps (aggregate), and G.fast performance up to 2,000 feet (600m) over a single twisted-pair of network or phone grade cable (CAT3 and above).
The G.fast Gigabit 1000Base-T Ethernet Extender Kit (NV-450EKIT) requires no configuration in default mode, includes one (1) NV-450M G.Fast Ethernet Extender CO/Master, one (1) NV-450S CPE/Slave, and everything needed to quickly deploy one point-to-point, high-speed 1000Base-T Ethernet link. The NV-450 units can utilize any twisted pair network-grade cable or pre-existing phone lines (CAT3 and above) and only require one (1) twisted pair (2 wires) to operate. The ultra-high speeds make the G.fast Gigabit 1000Base-T Ethernet Extender Solution ideal for FTTpd/FTTN applications, or simply to eliminate all-together the expense and hassle of fiber cable and equipment, saving you time and money. Additionally, the NV-450M CO/Master and NV-450S CPE/Slave each feature a web-based management tool which allows users to assign an IP address to the NV-450 devices and manage/monitor them remotely on the network. The NV-450M CO/Master even allows users to select from symmetric or asymmetric G.Fast Mode Settings depending on the needs of your application
Whether you have a new application or are looking to upgrade an existing network, the Netsys NV-450EKIT will provide you with the fastest Ethernet Extension solution available today.
BLOG POST: Introducing the NEW Netsys G.fast Gigabit Ethernet Extender Kit - NV-450EKIT
BLOG POST: Not All Gigabit Ethernet Extenders Are Created Equal
Features
- Compliant with ITU-T G.9700/9701 G.fast Standards
- Supports super Vectoring (G.fast), Vectoring (VDSL2), super Vectoring (VDSL35b) (NV-450S only)
- Supports 212a symmetric/asymmetric and 106a symmetric/asymmetric band profile
- Supports 17a/35b band profile (NV-450S only)
- Supports dual wave profile 106a/b & 212a/b (NV-450M supports only 212)
- G.fast profile supports up to 1.2Gbps aggregate bandwidth
- Supports Router / bridge mode selection (NV-450S only)
- Supports IP Multicast, IGMP Proxy, Snooping, Static Routing IPv4, IPv6 forwarding, DHCP
- Server/Relay/Client IPv4/IPv6, DNS Proxy and Relay, NTP Client (NV-450S only)
- Supports Jumbo frame (MTU) up to 1600 bytes
- Supports MAC Address based filtering
- Supports NTP Time Server
- Supports remote management and monitor
- Supports HTTP/HTTPS web management
- Supports SSH/SSL Security
- Supports Dual Firmware Image Backup
- 4 x RJ-45 10/100/1000Mbps Gigabit Ethernet Ports
- Supports IEEE 802.3 10Base-T, 802.3u 100Base-T and 802.3ab 1000Base-T Ethernet Standards
- RJ-11/Terminal block combo for line port
- Surge protection for Line port
- Splitter on board (1 x RJ-11 for POTS/ISDN)
- 2 x USB 3.0 Ports (Future Use)
- Reset Button (Factory Reset)
- Main Chipset : Intel
- CE, FCC, RoHS Compliant
Technical Specifications
Product Kit Contents
- 1 X NV-450M CO/Master
- 1 X NV-450S CPE/Slave
- 2 X AC to DC Power Supply
- 2 X RJ-11 Patch Cable
- 2 X RJ-45 Patch Cable
- 2 X RJ-45 Coupler
- 1 X User Guide Download Link (via email)
Cable Connections
- 4 X RJ-45 10/100/1000Mbps auto-negotiation Gigabit Ethernet port
- 1 X RJ-11 / Terminal block combo for VDSL2 line port
- 1 X RJ-11 connector for POTS/ISDN device
- 2 X USB 3.0 for connecting USB Dongle (Future Use)
- 1 X Reset Button for resetting to factory default

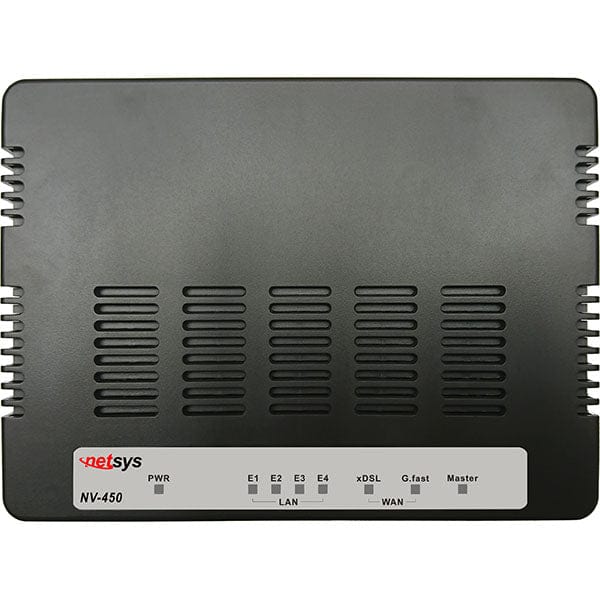

LED Indicators
- 1 X Power LED
- 4 X Link/Active Status for Ethernet port
- 1 X G.fast Link LED
- 1 X xDSL Link LED
- 1 X Master LED
Switch method:
- Store and forward
Flow control:
- Full duplex: IEEE 802.3x
- Half duplex: Back pressure
Typical Power Consumption
- NV-450M: 7.92W (full load without USB device), 17.92W (full load with 2 x USB devices)
- NV-450S: 8.16W (full load without USB device), 18.16W (full load with 2 x USB devices)
Power Supply:
- External switching power adapter (Input: AC 85~240 Volts/50~60Hz, Output: DC 12V/2A)
Operating Temperature:
- 0°C ~ 50°C (32°F ~ 122°F) Fanless, free air cooling)
Storage Temperature:
- -20°C ~70°C (-4°F ~ 158°F)
Humidity:
- 10 to 90% (non-condensing)
Dimensions:
- 196 x 146 x 40 mm (7.7" x 5.74 " x 1.57")
Shipping Weight:
- 4 lbs (1.8 kg)
Agency Compliance
- FCC 47 CFR Part 15 Subpart B Class A, CE, ROHS
Warranty
- 2 years (parts only)
