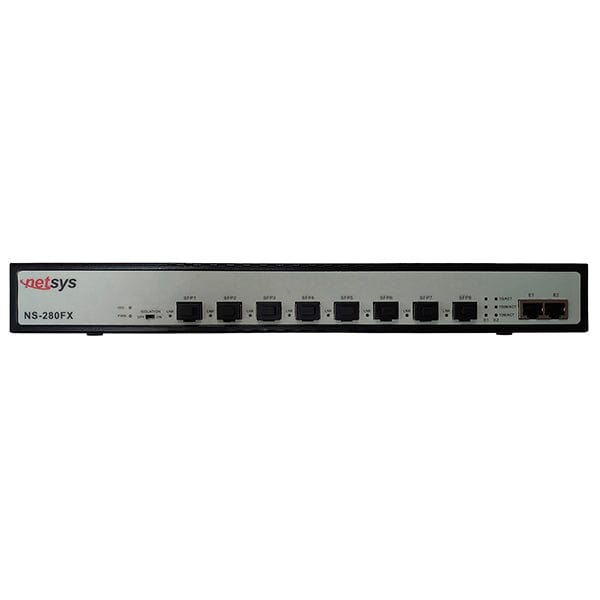

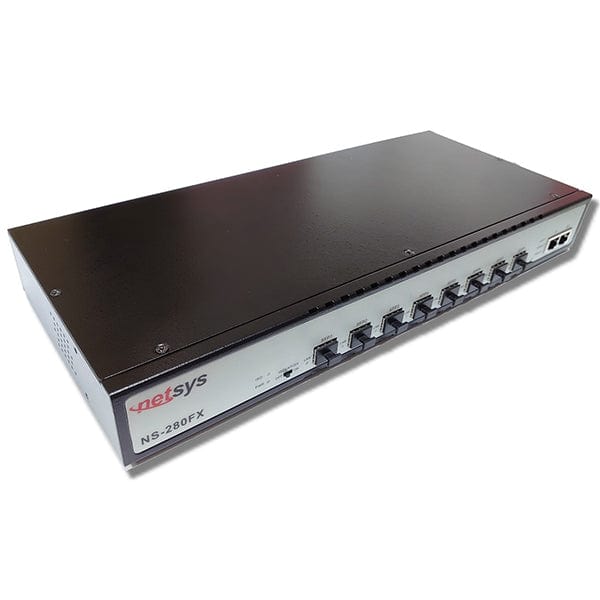

8-Port Unmanaged Gigabit SFP Media Converter Switch - NS-280FX

Description

The Netsys 8-Port Unmanaged Gigabit SFP Media Converter Switch (NS-280FX) is an unmanaged SFP switch, specially designed to support high power consumption SFP modules. This allows the NS-280FX to serve as an unmanaged IP DSLAM, while also providing the flexibility to utilize VDSL2-SFP modules as well as fiber optical SFP modules to extend your networking services for a wide variety of applications. The NS-280FX also supports SFP port isolation for security, which can be easily configured using the slide switch on the front panel.

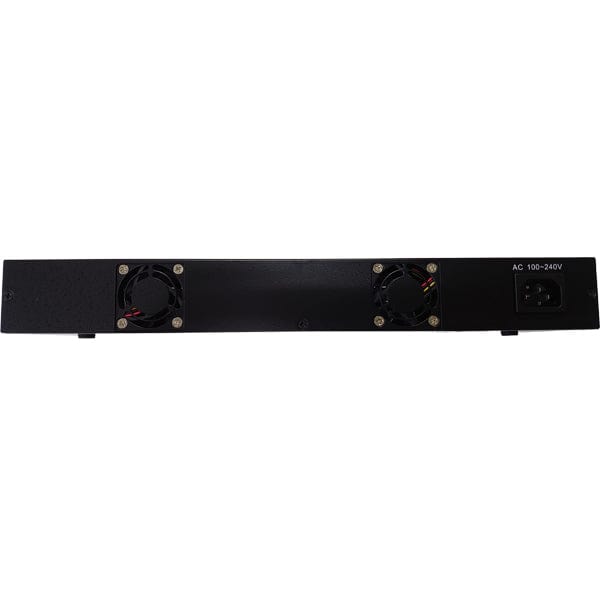

There are many multiport SFP switches on the market, but most either do not provide enough power for using VDSL2-SFP modules, or encounter failures due to overheating. For this reason, we designed the NS-280FX to not only provide sufficient power, but also to provide exceptional heat dissipation by physically separating the SFP slots, using two internal fans, and a specially ventilated metal housing design.

Easy to install and extremely flexible, the NS-280FX can be utilized as an ISP network solution for FTTdp (Fiber to the distribution point), FTTC (Fiber to the Curb), FTTB (Fiber to the Building), and SOHO applications, among others.

Features

Technical Specifications

Package Contents

• 1 X NS-280FX Unit
• 1 X AC Power Cord

Uplink Port Features

• 2 x RJ-45 10/100/1000BASE-T & auto–MDIX Ports

LEDs

• System : Power
• SFP Ports : LNK
• Uplink Ports : 1G / ACT,100M / ACT,10M / ACT
• Isolation : ISO8 X Extended Distance Ethernet Link Indicators

Other Features

•


Mounting Method

• Desktop or optional 19" Rack Mount (1RU)

Dimensions

• 14" x 6.14"x 1.75"(356mm x 156mm x 44mm)

Shipping Weight

• 4 lbs. ( Kg)

Operating Temperature

• 32 to 122°F (0 to 50°C)

Humidity

• 10% to 90% Non-Condensing

Agency Compliance

• FCC Part 15 Class A, CE
• RoHS Compliant
